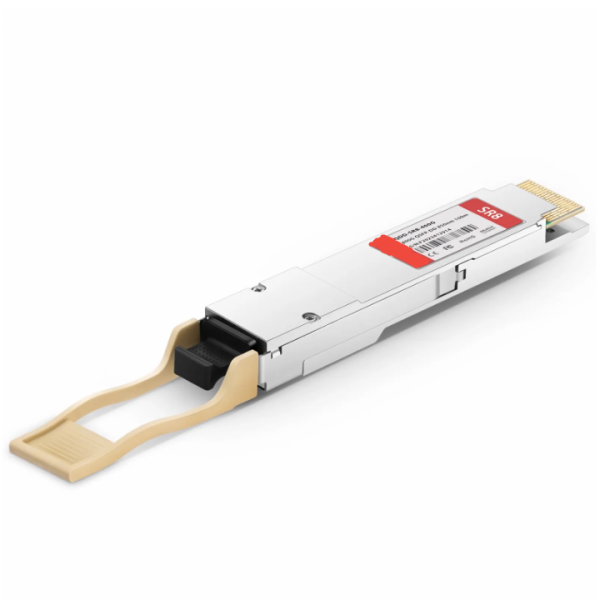

TS-Q2O-854H-01C/400G QSFP112 SR8 850nm 100m MMF MPO-16 Optical Transceiver Module for Data Center

The 400G QSFP112 SR8 is a high - density, short - reach optical transceiver designed for high - bandwidth data center interconnections. It adopts 8 - lane 53.125Gbps PAM4 modulation to achieve an aggregated data rate of 425Gbps, which is fully compliant with the IEEE 802.3ck 400GBASE - SR8 standard and QSFP112 MSA specification. Operating at 850nm wavelength with VCSEL technology, it supports transmission distances of up to 70m on OM3 multimode fiber and 100m on OM4 multimode fiber when FEC is enabled. Equipped with an MTP/MPO - 16 APC connector (8 transmit and 8 receive fibers), it ensures efficient and reliable short - range connectivity. The module features hot - pluggable functionality, built - in DOM for real - time monitoring, and a power consumption of less than 8W, making it highly suitable for high - density 400G Ethernet deployments in modern data centers, such as intra - rack and inter - rack connections, as well as breakout to 8×50G SR applications. It offers a cost - effective and high - performance solution for short - range, high - speed data transmission needs.

Table 1 shows the Quick Specs
