S5720-28TP-PWR-LI-AC Huawei Network Switches 24x10/100/1000 Ports 2 Gig SFP Ports PoE+

  • 1
  • 2

Brand Name : Huawei

Model Number : S5720-28TP-PWR-LI-AC

Certification : CE

Place of Origin : China

MOQ : 1 units

Price : Negotiable

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 50 units / months

Delivery Time : 2-3 days

Packaging Details : In original carton package

Branch : Huawei

Model : S5720-28TP-PWR-LI-AC

PoE : Supported

Stack ports : 24x10/100/1000BASE-T ports ,2x1000BASE-X ports

Power supply : 370W POE AC

Condition : New with 1Year Warranty

Contact Now

S5720-28TP-PWR-LI-AC Huawei Network Switch 24x10/100/1000 ports,

Overview

S5720-28TP-PWR-LI-AC - Huawei S5700 Series Switches.S5720-28TP-PWR-LI-AC(24 Ethernet 10/100/1000 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,PoE+,370W POE AC 110/220V)

Specifications

S5720-28TP-PWR-LI-AC Specification
Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 40 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H) 442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)
Weight (including packaging materials) 3.6 kg (7.94 lb)
Stack ports Twenty-four 10/100/1000BASE-T ports and two 1000BASE-X ports
RTC Not supported
RPS Not supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)
  • Without PoE: 38.8 W
  • 100% PoE loads: 444.8 W (system power consumption: 75.2 W, PoE: 369.6 W)

Typical power consumption (30% of traffic load)

  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
 27.4 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 48.6 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)

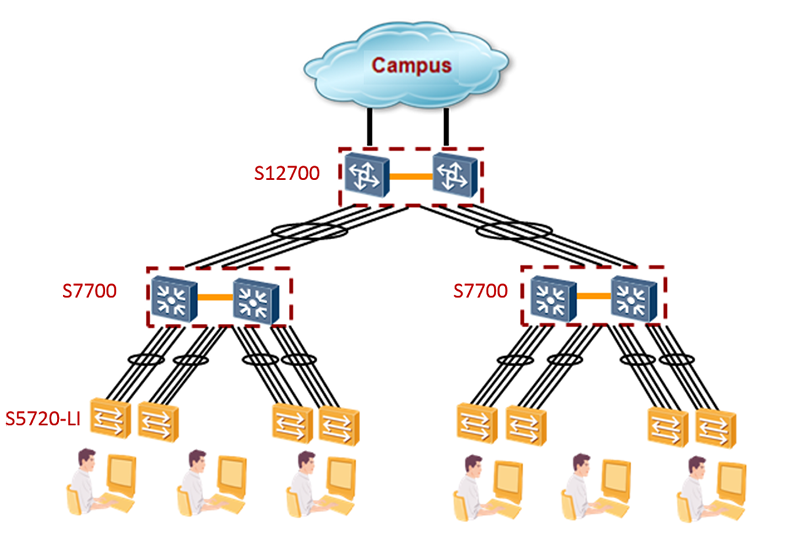

Networking and applications

The S5720-LI provides 1,000M desktop access functions for a high-performance network, such as voice VLAN, NAC and so on.

S5720-28TP-PWR-LI-AC Huawei Network Switches 24x10/100/1000 Ports 2 Gig SFP Ports PoE+

Ordering information

#No Product Description
1 S5720-12TP-LI-AC 24 Ethernet 10/100/1000 ports.4 10 Gig SFP+.AC 110/220V
2 S5720-28X-PWR-LI-AC 8 Ethernet 10/100/1000 ports.2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP.AC 110/220V
3 S5720-52X-LI-AC 48 Ethernet 10/100/1000 ports.4 10 Gig SFP+.AC 110/220V
4 S5720-52X-PWR-LI-AC 48 Ethernet 10/100/1000 ports.4 10 Gig SFP+.PoE+.370W POE AC 110/220V
5 S5720-28X-LI-24S-AC 24 Gig SFP.8 of which are dual-purpose 10/100/1000 or SFP.4 10 Gig SFP+.AC 110/220V.front access
6 S5720-28TP-PWR-LI-ACL 8 Ethernet 10/100/1000 PoE+.16 Ethernet 10/100/1000.2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP.124W POE AC.front access
